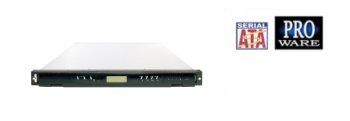

Proware SB-1403sa SATA RAID solutions provide excellent value for money, build quality and performance. With data storage capacities ranging upto 2 Terabytes in a 1U chassis, and great build quality why look at any other 1U SATA RAID solution ?
Features
- Supports hot spare and automatic hot rebuild
- Allows online capacity expansion within the enclosure
- Local audible event notification alarm
- Supports password protection and UPS connection
- Built-in serial port interface for remote event notification
- Tagged command queuing for 255 commands, allows for overlapping data streams
- Transparent data protection for all popular operating systems
- Supports multiple array enclosures per host connection.
RAID Management
- Smart-function LCD display
- Environmental monitoring unit
- Real time drive activity and status indicators
- Browser-based Java GUI management utility
RAID Function
- New disk auto spare
- Host independent
- Environment monitor
- Online expansion
- Continuous rebuild
- Online consistency check
- Failed drive auto rebuild
- Failed drive indicators
- Audible alarm
- Password protection
- UPS connection
- Bad block auto-remapping
| Model |
SB-1403-SA3 |
| Form-factor |
1U 19-inch rackmount chassis |
| RAID processor |
Intel 80321 64bit RISC |
| RAID Level |
0, 1, 3, 5, 0+1, JBOD |
| Cache memory |
128MB |
| No. of channels (host+drive) |
1 + 4 |
| Host bus interface |
Ultra 320 LVD |
| Drive bus interface |
S-ATA II |
| Data transfer rate |
Up to 320MB/Sec |
| Back plane board |
S-ATA II |
| Hot-swap drive trays |
Four (4) 1-inch trays |
| Power supply |
250W power supply w/PFC |
| Cooling fans |
1 (blower) |
| Power requirements |
AC 100V ~ 240V +/-10% full range |
6A ~ 3A, 60Hz ~ 50Hz |
| Environmental |
|
| Relative Humidity: |
10% ~ 85% Non-condensing |
| Operating Temp: |
10 ? C ~ 50 ? C (50 ? F ~ 122 ? F) |
| Physical Dimensions: |
44(H) x 449(W) x 580(D)mm |
| Weight |
1.2kgs / 26.4Lbs (without drives) |
Proware SB-1403SA User Manual Download
Proware SB-1403SA Techhnical Specs Download
| Proware SB-1403SA - Bare Unit |
£1,195 |
| Proware SB-1403SA - 480 GB (4x120GB) |
£1,418 |
| Proware SB-1403SA - 640 GB (4x160GB) |
£1,443 |
| Proware SB-1403SA - 800 GB (4x200GB) |
£1,492 |
| Proware SB-1403SA - 1 TB (4x250GB) |
£1,542 |
| Proware SB-1403SA - 1.2 TB (4x300GB) |
£1,641 |
| Proware SB-1403SA - 1.6 TB (4x400GB) |
£1,938 |
| Proware SB-1403SA - 2 TB (4x500GB) |
£2,186 |
| Don't miss out on total peace of mind with our complete remote & on-site support packages. |
| SB-1403SA - Installation |
£245.00 |
| SB-1403SA - 12 Months On Site Maintenance |
£295.00 |
| SB-1403SA - 24 Months On Site Maintenance |
£531.00 |
| SB-1403SA - 36 Months On Site Maintenance |
£708.00 |
All prices quoted on our website are subject to change without notice & exclude Delivery & VAT.
Please see our Terms and Conditions for more details.
All Proware products are covered by free technical support direct from the manufacturer. However you can upgrade any Proware product to include Gold Support, local technical support provided by SQS engineers in Reading , Berkshire , via our Technical@sqsonline.com service. Technical@sqsonline.com utilises the services of GoToMyPC. All onsite maintenance contracts include Gold Support for the duration of the onsite maintenance contract. SQS Ltd does not provide any direct technical support for any product that is not covered either by an onsite maintenance contract or by a Gold Support contract. All contracts must be valid and payment must have been made in full prior to any technical support request. Gold Support and onsite maintenance contracts are available to purchase only when making an initial hardware purchase. Service level upgrade to either onsite maintenance or Gold Support is not available after delivery.
