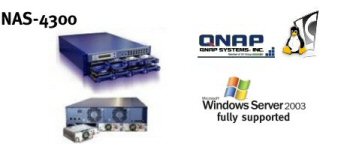

The NAS-4300 is a 8 Disk IDE NAS product that is located at the high end of the NAS market in terms of features, but at a cost that many 4 disk NAS solutions cannot match.
The NAS 4300 has the option of combining a 16-port layer 2 switch (10/100) with dual Gigabit Ethernet LAN ports and all built into a 19", 3U rack-mountable chassis.
The NAS 4300 is powered by a high-performance Intel P4 CPU, which allows the unit to meet the requirements for the ever increasingly demanding requirements of the most technology-sensitive business environment.
- Use IEI NAS Solutions For Easy Manageable Disk To Disk Backup
- Replicate to any other IEI NAS Solution For Data Protection
- Protect Your Data Using Built In Replication Software
- Simply Purchase Any Two NAS Units For Total Data Protection
- Example ; Replicate a NAS 4300 to another NAS 4300
- 3U Rack-mount Type, Maximum capacity up to 4 TB
- Eight Hot Swappable / Hot Spare Hard Drive
- Three Hot Swap / Hot Spare Power Supply
- Supports 2-port Gigabit Ethernet Connector
- Supports External SCSI Tape Device
- Supports UPS Power Management
- Built-in Printer Server
- Web-based Management
- Supports Journaled File System
- Network Fail-over/Load-balancing
- Firmware updates available by subscription to QNAP.co.uk
- Snapshot
- Remote Replication
- On-line Virus-scanning
- RAID 5 (Disk striping with parity) with Hot Spare support
- RAID1 (Disk Mirroring)
- RAID 0 (Disk Striping)
- JBOD
- HDD Hot Swap/Hot Spare Support
- SNMP (Simple Network Management Protocol) Protocol Support
- Multi-platform OS Support: Windows, Mac, Unix/Linux, & Novell
CPU |
Intel P4 2.4 GHz |
Flash Memory |
32MB |
DRAM |
512MB |
HDD |
8 x 3.5" IDE HDD |
Gigabit Ethernet Ports |
2 x Gigabit RJ-45 Ethernet Ports |
Fast Ethernet Ports |
1 x 10/100 Mbps Ethernet Ports ( For NAS-4300 ODM/OEM Only ) |
Switch |
16 x 10/100 Mbps Auto Sensing Switch ( For NAS-4300S Only ) |
SCSI Port |
1 x Ultra 160 SCSI |
Form Factor |
3U |
Dimension |
592mm(D) x 430mm(W) x 131mm(H) |
Temperature |
0~45 ? |
Humidity |
0~95% R.H |
Power Supply Spec |
3 x Redundant ATX Power Supply, 165W, 90 ~ 264V |
Operation System |
Linux Embedded System |
Network Transport Protocols |
TCP/IP, IPX, NetBEUI, Apple Talk |
Network File Protocols |
Microsoft Networks (CIFS/SMB), Apple (AFP), UNIX (NFS), Internet (HTTP), Novell Network (NCP), File Transfer Protocol (FTP) |
Network Security |
Microsoft Network Domain Controller (PDC), Microsoft AD Authentication |
Network Client Type |
Microsoft Windows 95/98/ME/NT/2000/XP/2003, Macintosh system 7.5+, Linux/UNIX, Novell |
Network Configuration |
Dynamic IP Address, Fixed IP Address, DHCP Service, Load Balancing, Fail-over |
Disk Configuration |
RAID 0 (disk stripping), RAID 1 (disk mirroring), JBOD (Liner Disk Volume), RAID 5(Distributed Parity), Single disk |
Disk Management |
Hard Disk Failure Detection (S.M.A.R.T), Disk Detect/Auto Recovery, Disk Used Status Management |
File System Management |
ournaling File System, Snapshot, Web File Manager for Remote Access, Enhanced JAVA Web File Manager, Over 2 GB Files Support (Windows Networking, FTP, NFS V3), Unicode Support, Microsoft ACL Support, Users quota setting |
System Management |
Web-based administration, SNMP Support, System Temperature Monitor, E-mail alert, LCD Panel display, LED display, Alarm buzzer, System Software upgrade, Support Network Time Protocol, Multi users account setting, On-line Virus Scanning Support, Schedule shutdown and boot |
System Setup and Configuration |
Web-based GUI for system administration, Quick Install Wizard, Save and restore configuration, LCD Panel Configuration, Reset Button |
Multi Language Support |
English, Traditional Chinese, Simplified Chinese, Japanese, French, German |
UPS Support |
RS-232, SNMP |
Backup Management |
Support Client Backup Software NetBak Replicator, Support BakBone NetVault Backup Agent, Virtual Tape Library, Schedule to remote replication backup, Support Most Popular Network Backup Application, Block Level Remote Replication |
Event Log |
Display all current login users, Display system log/alert/error, Display all DHCP distribution log |
