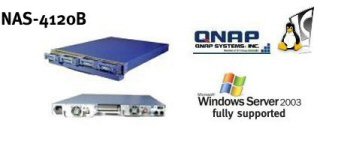

With a 19" 1U rack-mountable chassis, with its Pentium PIII 1.26GHz + 512Mb RAM, no other NAS solution comes even close in offering the features vs value that the NAS 4120B offers as standard.
The NAS-4120B series is able to meet the requirements of increasing demand for high performance and storage capacity in the technology-sensitive business environment, whilst paying close attention to the all important issue of cost.
CPU |
NAS-4120A : Intel Celeron 1.2GHz
NAS-4120B : Intel PIII Tualatin 1.26GHz |
Flash Memory |
32MB |
DRAM |
NAS-4120A : 256 MB
NAS-4120B : 512 MB |
HDD |
4 x 3.5" IDE HDD , up to 1200 GB |
LAN Ports |
1 x 10/100/1000 Mbps RJ-45 Ethernet Port |
SCSI Port |
1 x Ultra 160 SCSI ( For SCSI Tape) |
Serial Port |
1 x RS-232 ( For UPS) |
Form Factor |
19" 1U ??? |
Dimension |
570mm(D) x 430mm(W) x 44mm(H) |
Weight |
Net Weight : 12KG Gross Weight : 16KG |
Temperature |
0~45 ? |
Power Supply Spec |
2 x ATX Redundant Power Supply, 150W, 90~264VAV |
Operation System |
Linux Embedded System |
Network Transport Protocols |
TCP/IP, IPX, NetBEUI, Apple Talk |
Network File Protocols |
Microsoft Networks (CIFS/SMB), Apple (AFP), UNIX (NFS), Internet (HTTP), Novell Network (NCP), File Transfer Protocol (FTP) |
Network Security |
Microsoft Network Domain Controller (PDC) , Microsoft AD Authentication |
Network Client Type |
Microsoft Windows 95/98/ME/NT/2000/XP/2003, Macintosh system 7.5+, Linux/UNIX, Novell |
Network Configuration |
Dynamic IP Address, Fixed IP Address, DHCP Service , Network load balance and fail over |
Disk Configuration |
RAID 0 (Stripping), RAID 1 (Mirroring), JBOD (Liner Disk Volume), RAID 5(Distributed Parity), Single disk |
Disk Management |
Hard Disk Failure Detection (S.M.A.R.T), Disk Detect/Auto Recovery, Disk Used Status Management |
File System Management |
Journaling File System, Web File Manager for Remote Access, Over 2 GB Files Support (Windows Networking, FTP, NFS V3), Users quota setting |
System Management |
Web-based administration, SNMP Support, System Temperature MonitorE-mail alert, LCD Panel display, LED display, Alarm buzzer, System Software upgrade, Support Network Time Protocol, Multi users account setting, On line virus scan, Schedule shutdown and boot |
System Setup and Configuration |
Web-based GUI for system administration, Quick Install Wizard LCD Panel Configuration, Reset Button |
Multi Language Support |
English, Traditional Chinese, Simplified Chinese, Japanese, French, German Danish, Dutch, Finnish, Italian, Korean, Norwegian, Portuguese, Russian, Spanish, |
