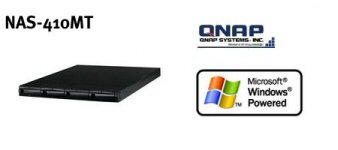

Windows Powered Network Attached Storage
Features An Optimized File Server with Reliability and Scalability You Can Build On.
Highly Reliable and Available
Optimized Software and Hardware
Access stored files with more reliability using a Windows operating system that is optimized for file serving. In addition, built-in hardware redundancies are included in the solution to avoid any single points of failure within the device.
Persistent Storage Manager
Provide high data availability by creating and managing up to 250 data snapshots. Entire server volumes of corrupted or deleted data can be restored within minutes, instead of hours that might be required to restore from tape.
Storage Manager
Optimize storage resources by setting quotas at volume, directory, and user levels. In addition, enforce rules regarding storage of unwanted files by filtering file types and track resource usage with storage reports.
Replication
Increase data availability and provide disaster recovery by creating multiple copies of data on remote servers over local area networks (LANs) or wide area networks (WANs).
Distributed File System
Build and manage a single, hierarchical view of multiple file servers and their shares. Distributed File System simplifies management of data on multiple distributed servers. Distributed File System enables Windows Powered NAS to automatically redirect clients to data replicas in case data becomes unavailable.
Clustering
Create high availability solutions with support for two-node failover clustering using Microsoft Cluster Service.
Easy to Deploy and Manage
Plug-and-Play Deployment
Deploy a preconfigured Windows Powered NAS solution in minutes. Use a Web interface to connect to the network, join an Active Directory domain or a local workgroup, add users, create shares, and select file sharing protocols.
Remote Management
Manage devices remotely through a Web user interface, Terminal Services, or standard enterprise server management utilities.
Seamless Enterprise Integration
Active Directory Integration
Take advantage of existing Active Directory policies to centrally manage Windows Powered NAS using Group Policy, Kerberos Authentication, and Encrypted File System.
Network Interoperability
Easily configure Windows Powered NAS to interoperate with most common network environments, including Windows, UNIX, Novell NetWare, and Apple Macintosh. Also included is support for protocols including CIFS, FTP, WebDAV, and Apple File Sharing Services.
Support for Existing Management Software
Leverage existing IT investment in server management tools like Microsoft Systems Management Server, Tivoli, and HP OpenView.
Anti-Virus Software Support
Take advantage of investment in existing anti-virus utilities to protect data.
Low Total Cost of Ownership
One of the Lowest Costs Per Gigabyte Available
Windows Powered NAS enables IT administrators to easily manage growing amounts of data while reducing storage costs. Customers can acquire Windows Powered NAS at one of the lowest costs per gigabyte available, and take advantage of high scalability to expand storage capacity as needed. Advanced availability features, ease of deployment and management, and seamless enterprise integration also combine to lower the total cost of ownership.
CPU |
Intel Pentium 4 3.0 GHz |
DRAM |
512MB |
HDD |
4 x 3.5" SATA Hotswap HDD, up to 1.6TB |
LAN Ports |
2 x Gigabit RJ-45 Ethernet port |
SCSI |
Ultra320 |
USB |
2 x USB2.0 |
Serial Port |
COM1 |
PS/2 |
Mouse, keyboard |
VGA |
VGA port |
LED Indicator |
Power, Error, Network Status, Hard Disk |
Alarm Buzzer |
System malfunction warning |
Form Factor |
19" 1U Rack-mount |
Dimension |
540mm(D) x 440mm(W) x 44mm(H) |
Weight |
Net Weight: 8Kg Gross Weight: 12Kg |
Temperature |
0~45 ? |
Humidity |
0 ~ 95% R.H |
Power Specification |
ATX Power Supply, 300W, 100~240V |
Operation System |
Windows Storage Server 2003 |
WSS Feature |
DFS, VDS, VSS, Web UI Management |
Network Transport Protocols |
TCP/IP,IPX,NetBEUI,Apple Talk |
Network File Protocols |
Microsoft Networks (CIFS/SMB),Apple (AFP),UNIX (NFS),Internet (HTTP),Novell Network (NCP),File Transfer Protocol (FTP) |
Network Security |
Microsoft Network Domain Controller (PDC),Microsoft AD Authentication |
Network Client Type |
Microsoft Windows 95/98/ME/NT/2000/XP/2003,Macintosh system 7.5+,Linux/UNIX,Novell |
Disk Configuration |
RAID 0 (disk stripping),RAID 1 (disk mirroring),JBOD (Liner Disk Volume),Single disk |
