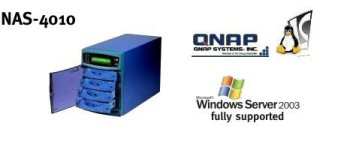

Available from 1TB to 2TB the NAS-4010 is the perfect solution to deploying a network attatched file server for your business. The disk management is available in RAID 0 (stripping, no parity), JBOD, or individual disk. RAID 1 (mirroring) data protection, RAID 5 (stripping with parity), or JBOD. The network file protocol supports Microsoft Network (CIFS/SMB), Apple (AFP), UNIX(NFS), Novell Netware, File Transport Protocol (FTP) and Internet (Web Browser) that gives remote client the ease of access through web browser any where around the world.
Features as standard include ; dual gigabit connections, 4 hot swap drives, dual power supplies, both hot swap. A great new feature included with the NAS 4010 is the ability to directly connect either a CD or DVD writer via USB and burn disks directly, controlled from any browser !
Hardware Redundancy Protection: The NAS-4010 offers hardware redundancy protection over its components that can be plugged and unplugged while the system is in operation. This provides continuous data and system availability with no downtime.
Hot Swappable Hard Drives: The NAS-4010 features 4 hot-swappable hard drives to avoid downtime of business critical data availability and the possible loss of data. The hot swappable feature provides data protection in the event of an individual drive failure, the drive can be removed and a new drive can be plugged in without shutting down the system.
While the NAS-4010 unit operating in RAID 5 or 1 disk management, the bad drive can be removed and replaced with a new drive as a hot-spare. Our proprietary Operation System NASware OS will automatically configure the replacement drive and reconstruct the data from the lost drive and allow work to continue without interruption.
Hot Swappable and Redundant Power Supplies: To prevent failure of system components is a key ingredient of sustaining zero downtime in accessing vital business information. The design-in of redundant and hot-swappable power supplies makes the NAS-4010 continuing to operate in the event of a failure of power. The failed power supply can be replaced without interrupting service and provide high data availability at all time.
- Available from 1TB to 2TB
- RAID 0, 1, 5, JBOD, and Individual Disk data protection
- Hardware Fail-Over Redundancy Protection
- Redundant and Hot-swappable power supplies.
- Hot-swappable Hard Drives
- Support all major Network Operating Systems
- Including Windows, MAC, Linux/Unix, Novell Netware
- Autosensing Dual Gigabit Ethernet Connections
- Support network load balance and fail over
- Support for Remote Replication to other QNAP devices
- DHCP Server
- Microsoft AD Authentication
- Firmware updates available by subscription to QNAP.co.uk
- VIA Eden 733 Processor
- Installation in a minutes
- Set-up via LCD display or web interface
- Web-based Management
- Firmware update through web interface
- No User Licenses
- Instant storage file sharing via LAN for office or department
- Personal entertainment archive
- DVR system storage expansion
- NAS 4010 Solutions Include A Standard 2 Years RTB Warranty
| System Spec |
|
CPU |
VIA Eden 733 |
Flash Memory |
32MB Flash |
Memory |
256MB RAM |
Storage Spec |
|
Hard Disk |
4 x 3.5" IDE Hotswap HD, up to 1.6 TB |
| Network Spec |
|
LAN Ports |
2 x 10/100/1000 Mbps RJ-45 Ethernet Port |
| IO Interface |
|
USB Port |
2 x USB 2.0 (For UPS) |
| Physical Spec |
|
Form Factor |
Desktop |
Dimension |
380mm(D) x 168mm(W) x 240mm(H) |
Weight |
Net Weight : 8KG Gross Weight : 12KG |
| Operation Environment |
|
Temperature |
0~45 ? |
Humidity |
0~95% R.H |
| Power Management |
|
Power Supply Spec |
2 x ATX Redundant Power Supply, 158W, 95~265VAV |
| Software Spec |
NasWare 4 Advanced Edition |
Operation System |
Linux Embedded System |
Network Transport Protocols |
TCP/IP, IPX, NetBEUI, Apple Talk |
Network File Protocols |
Microsoft Networks (CIFS/SMB), Apple (AFP), UNIX (NFS), Internet (HTTP), Novell Network (NCP), File Transfer Protocol (FTP) |
Network Security |
Microsoft Network Domain Controller (PDC)
Microsoft AD Authentication |
Network Client Type |
Microsoft Windows 95/98/ME/NT/2000/XP/2003, Macintosh system 7.5+, Linux/UNIX, Novell |
Network Configuration |
Dynamic IP Address, Fixed IP Address, DHCP Service,
Network load balance and fail over |
Disk Configuration |
RAID 0 (Stripping), RAID 1 (Mirroring), RAID 5 (Distributed Parity), JBOD (Liner Disk Volume), Single disk |
Disk Management |
Hard Disk Failure Detection (S.M.A.R.T), Disk Detect/Auto Recovery, Disk Used Status Management |
File System Management |
Journaling File System, Web File Manager for Remote Access, Over 2 GB Files Support (Windows Networking, FTP, NFS V3), Users quota setting, Microsoft ACL support, Snapshot, Unicde Support, USB Flash Disk Auto-Copy |
System Management |
Web-based administration, SNMP Support, System Temperature MonitorE-mail alert, LCD Panel display, LED display, Alarm buzzer, System Software upgrade, Support Network Time Protocol, Multi users account setting, On-line virus scanning, Schedule shutdown and boot |
System Setup and Configuration |
Web-based GUI for System Administration, Quick Install Wizard, LCD Panel Configuration, Reset Button |
Multi Language Support |
English, Traditional Chinese, Simplified Chinese, Japanese, French, German |
UPS Support |
SNMP, USB |
| Additional Server Service |
USB Port Support Printer Server |
Backup Management |
Support Client Backup Software NetBak Replicator, Schedule to Remote Replication Backup, Support Most Popular Network Backup Application, CD/DVD Burning & Restore (Support CD-R/RW, DVD+R/R/+RW/-RW/-R) |
Event Log |
Display all current login users, Display system log/alert/error, Display all DHCP distribution log |
| QNAP NAS 4010 - Bare Unit |
£771 |
 |
| QNAP NAS 4010 - 480GB ( 4x120GB ) |
£969 |
|
| QNAP NAS 4010 - 640GB ( 4x160GB ) |
£994 |
|
| QNAP NAS 4010 - 800GB ( 4x200GB ) |
£1,019 |
|
| QNAP NAS 4010 - 1 TB ( 4x250GB ) |
£1,068 |
|
| QNAP NAS 4010 - 1.2 TB ( 4x300GB ) |
£1,167 |
|
| QNAP NAS 4010 - 1.6 TB ( 4x400GB ) |
£1,464 |
|
| QNAP NAS 4010 - 2 TB ( 4x500GB ) |
£1,729 |
|
| QNAP NAS 4010-Spare Caddy (No HDD) |
£95 |
|
| QNAP NAS 4010 - Spare Power Supply |
£145 |
|
| QNAP NAS 4010 - Installation |
£245 |
|
| Don't miss out on total peace of mind with our complete remote & on-site support packages. |
| QNAP NAS 4010 - 12 Months On Site Maintenance |
£325 |
|
| QNAP NAS 4010 - 24 Months On Site Maintenance |
£585 |
|
| QNAP NAS 4010 - 36 Months On Site Maintenance |
£780 |
|
All prices quoted on our website are subject to change without notice & exclude Delivery & VAT.
Please see our Terms and Conditions for more details.
All QNAP products are covered by free technical support direct from the manufacturer. However you can upgrade any QNAP product to include Gold Support, local technical support provided by SQS engineers in Reading , Berkshire , via our Technical@sqsonline.com service. Technical@sqsonline.com utilises the services of GoToMyPC. All onsite maintenance contracts include Gold Support for the duration of the onsite maintenance contract. SQS Ltd does not provide any direct technical support for any product that is not covered either by an onsite maintenance contract or by a Gold Support contract. All contracts must be valid and payment must have been made in full prior to any technical support request. Gold Support and onsite maintenance contracts are available to purchase only when making an initial hardware purchase. Service level upgrade to either onsite maintenance or Gold Support is not available after delivery.
For More Information
Call Us On 08450 666 222
|
